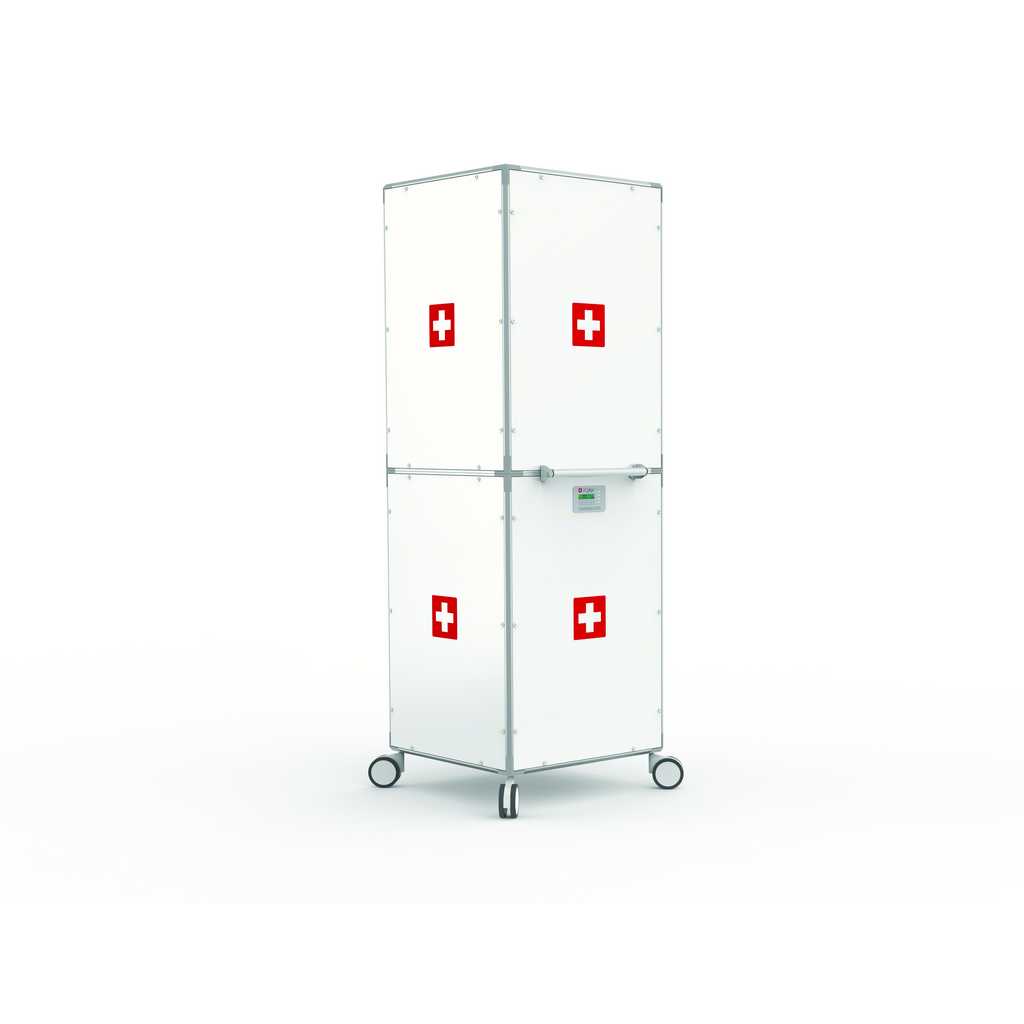

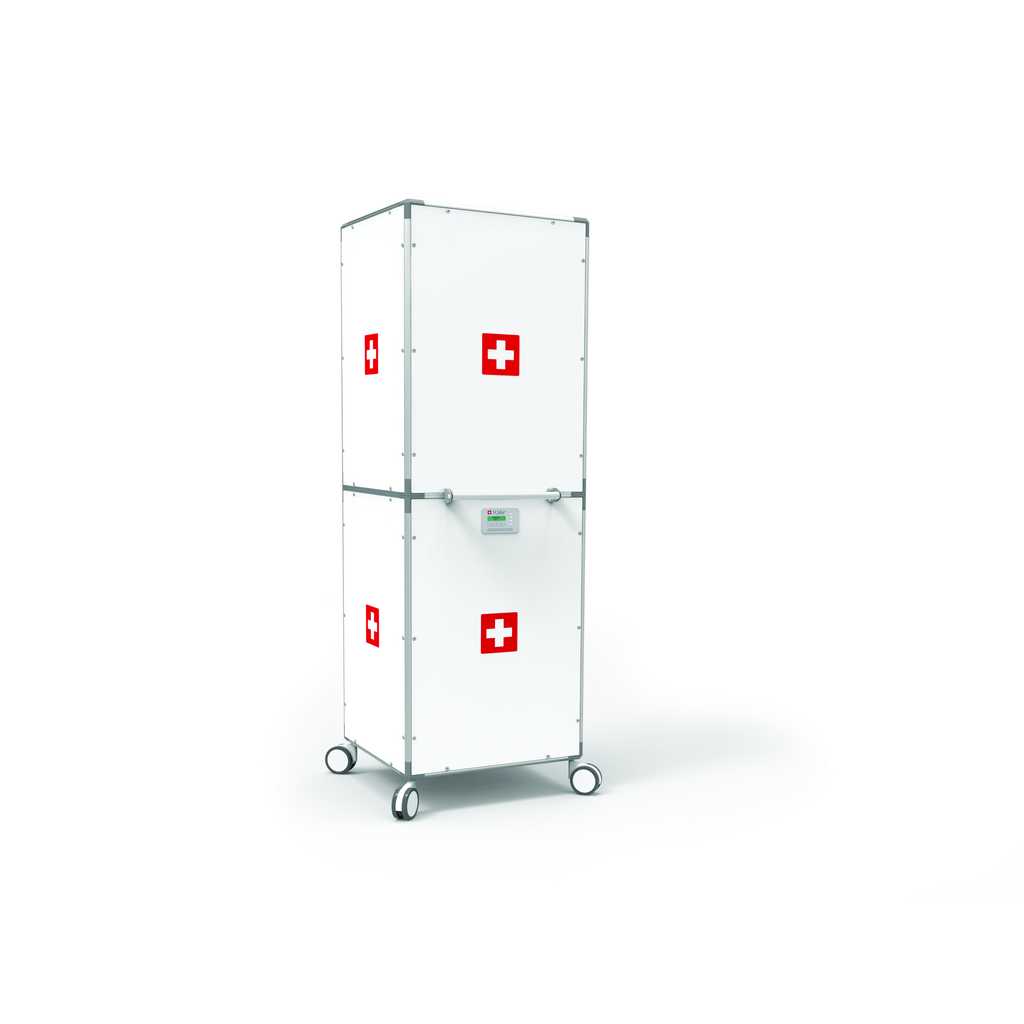

IQAir CleanZone 5000

  • Most powerful air cleaning system of its class
  • Gas-phase filtration of over 2000 contaminants
  • Improves air quality by up to 99%
  • Choice of gas phase media for optimised removal of gaseous chemicals and odours
  • 12 air changes per hour (ACH) in rooms up to 80m2
  • Ultra quiet operation
  • Safety approved in accordance with hospital norms

The IQAir CleanZone 5000 is the high capacity air filtration unit for the maximum control of particulate matter, microorganisms and gas contamination in large areas.

The IQAir CleanZone 5000 can uses a variety of different particulate and gas filtration media, such as the PreMax 500 pre-filter and HyperHEPA 700 filter-drum to remove virtually all particulate contamination, including aerosols and micro-organisms.

With a airflow rate of up to 2400 cubic metres per hour, the IQAir CleanZone 5000 air filtration unit is capable of providing required air changes in even very large environments.

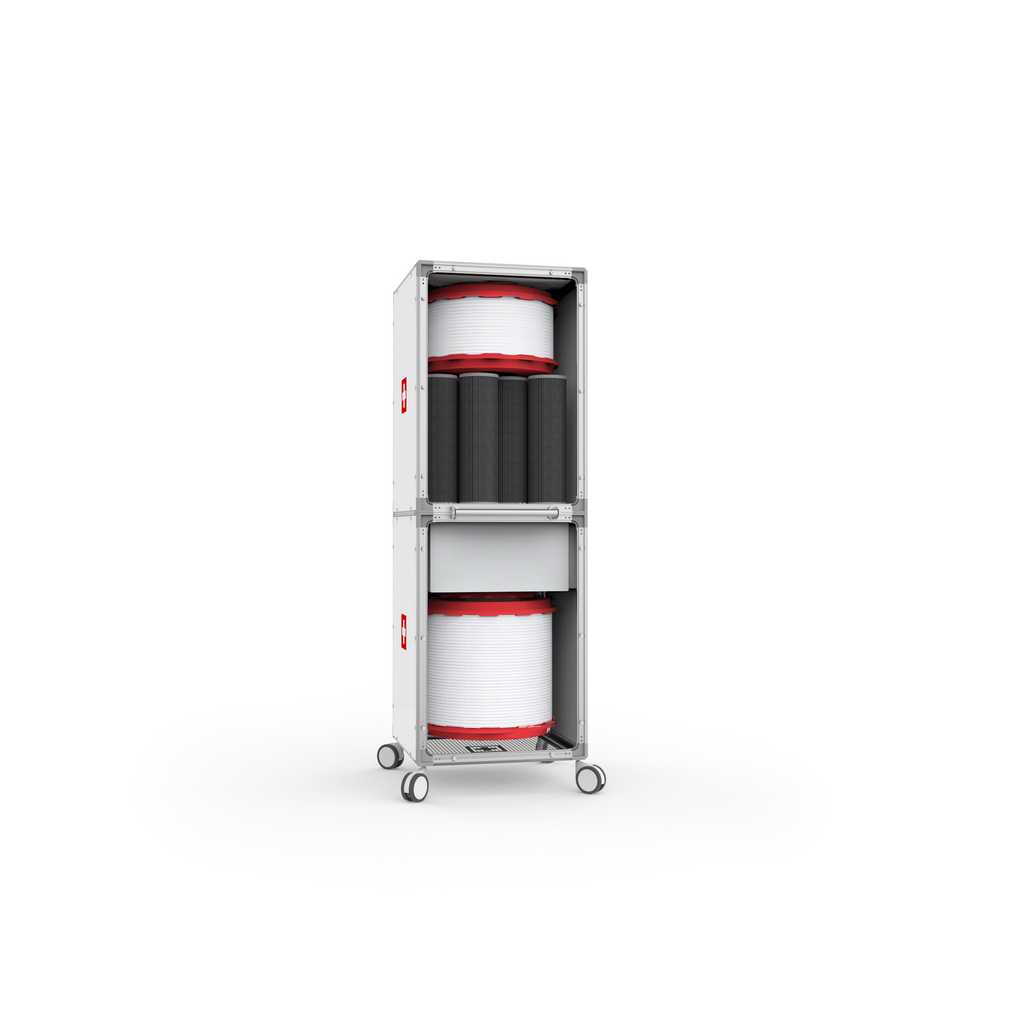

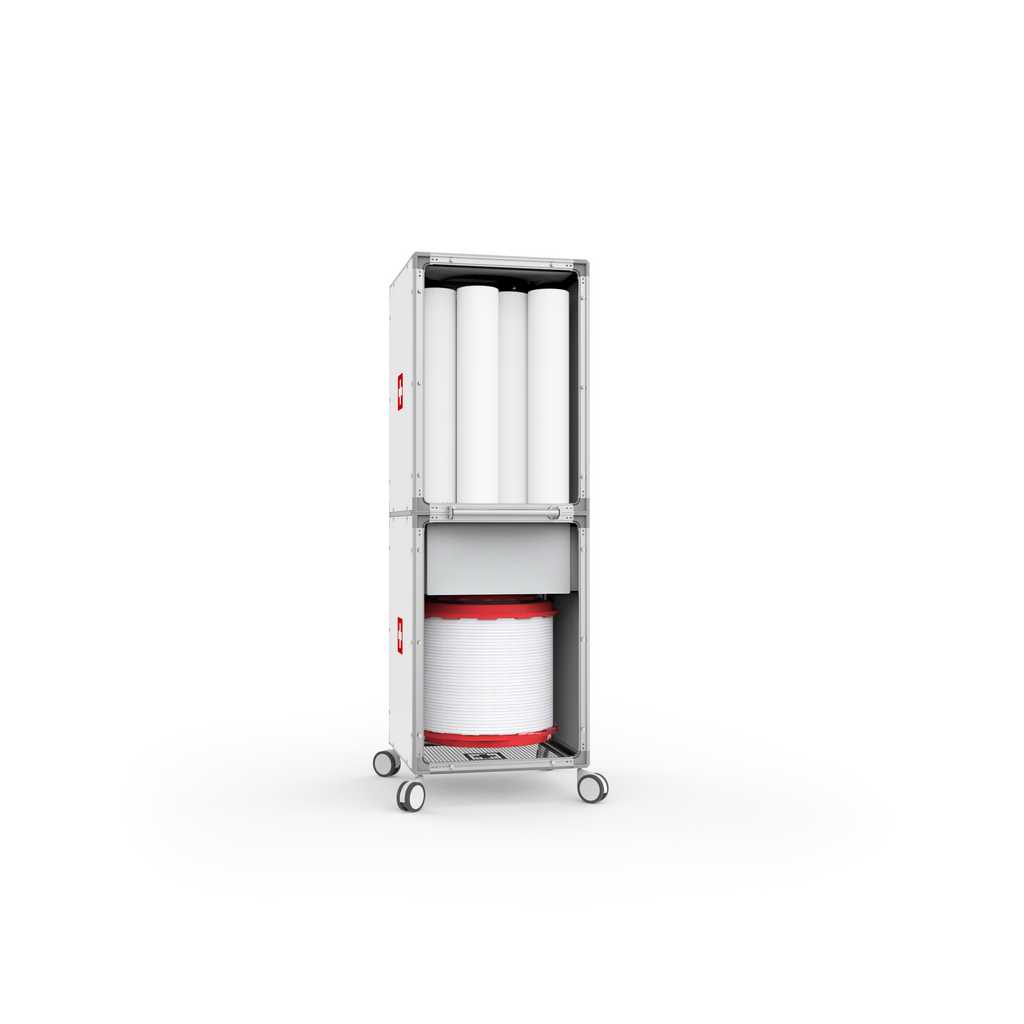

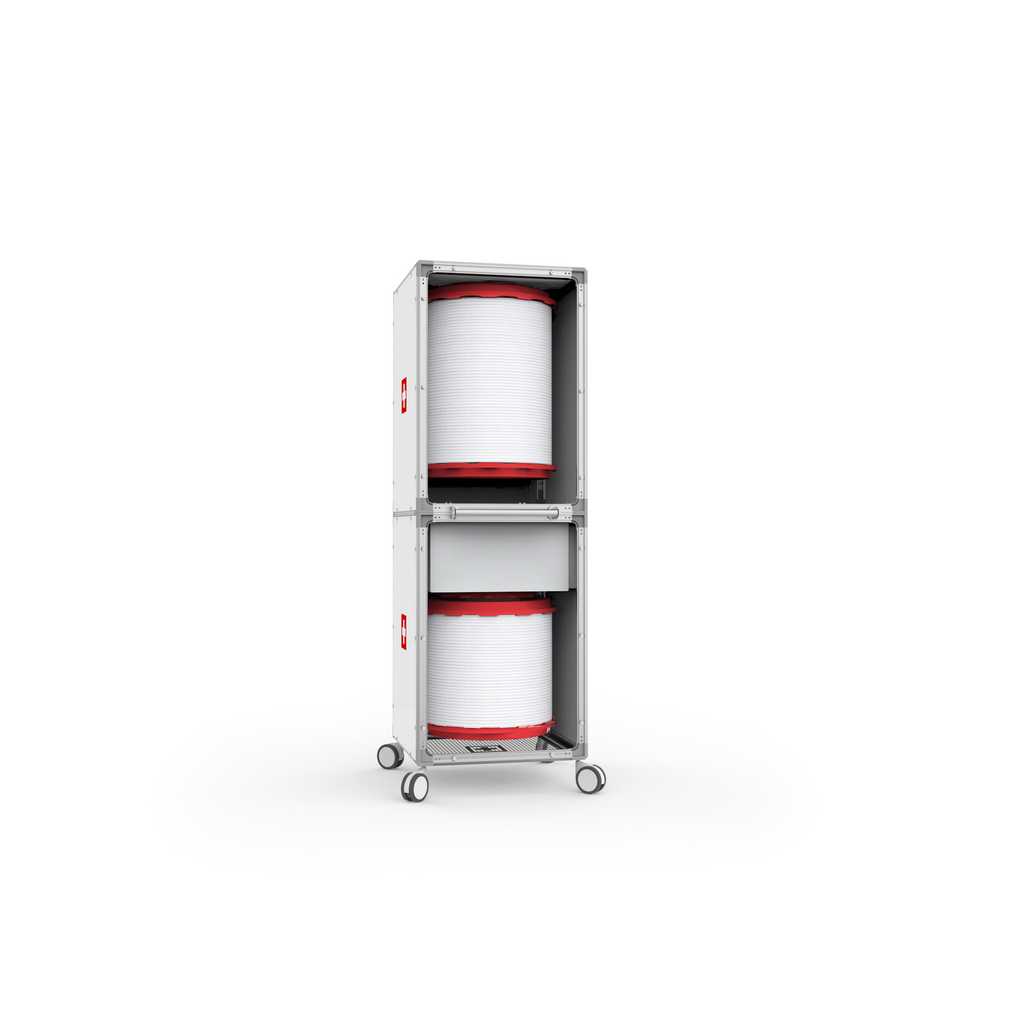

Model OverviewCleanzone 5100Cleanzone 5200Cleanzone 5300
Technical Data
Applicationmaximum reduction of particulate matter and microorganismsmaximum reduction of gaseous substances, odours and particulate matter (incl. microorganisms)maximum reduction of gaseous substances, odours and microorganisms *
Airflow Rate (max.)2400 m 3/h2200 m3/h1800 m3/h
Removal Efficiency for Particulates ( 0.3μm)>99.97%>99%>99.97%
Weight/Gas Phase Filtration Media Content75 kg/none146 kg/54 kg **120 kg/31 kg **
Sound Power Level (ANSI/ASA S12.32)38 -73 dB(A)
Dimensions (incl. Casters)643 x 643 x 1943 mm
Additional Features10 fan-speed settings; intelligent filter life monitor for each filter; electronically commutated motor (ECM).
Power Consumptionat 230V, 50Hz: 25-500W
Electrical Configuration220- 240V, 50/60Hz
Pre-Filter PreMax™ 500 high-capacity fine dust filter (class F9 / MERV 16) surface area 17 m2
Particle FilterHyperHEPA®700-filter drum class H12/13; surface area 28 m2Post-filter fibre sleeves class H11; surface area 4.3 m2HyperHEPA®300-filter drum class H12/13; surface area 12 m2
Filters
Broad-Spectrum Gas & Odour Filter (standard) Specialised Gas & Odour Filters (optional)MultiGas™ GCXL cartridges         (12 pieces; weight: 54 kg)MultiGas™ GCX cartridges                            (12 pieces; weight: 31 kg)
Formaldehyde, hydrogen sulfide, sulfur dioxide etc.ChemiSorber GCXL cartridges (12 pieces; weight: 72 kg)ChemiSorber GCX cartridges (12 pieces; weight: 42 kg)
Volatile organic compounds (e.g. benzene, toluene, xylene), chlorine, nitrogen dioxide etc.VOC GCXL cartridges (12 pieces; weight: 42 kgVOC GCX cartridges (12 pieces; weight: 24 kg)
Ammonia and other base substancesAM GCXL cartridges (12 pieces; weight: 48 kg)AM GCX cartridges (12 pieces; weight: 28 kg)
Mercury vapoursHg GCXL cartridges (12 pieces; weight: 50 kg)

Acid gasesAcidPro GCXL cartridges (12 pieces; weight: 50 kg)

Max. Air Changes per Hour in:
50 m2 room (2.7 m ceiling height)17.816.313.3
100 m28.98.26.7
200 m24.44.13.3
Other
Warranty Period2 years (excluding filters)
Supplied AccessoriesRemote control (incl. batteries), casters (2 with locking wheels), handle bar, power cord
Optional AccessoriesStabilising feet, flexible suction arm, closed end-panels for duct connection, hard wire kit
