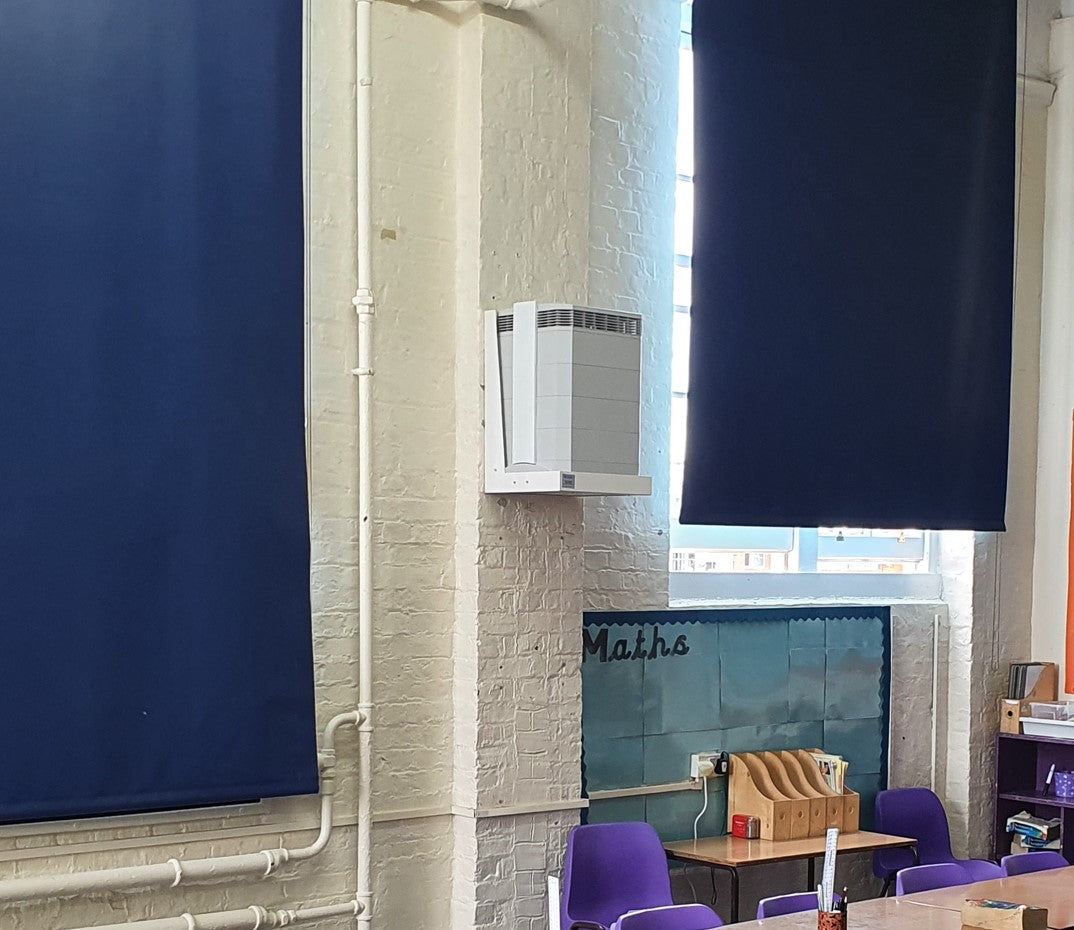

The IQAir Vertical Mount Fixture Kit (VMF) serves as a practical solution for situations where floor space is limited or where placing the system on the floor is not ideal. Made from premium-grade stainless steel, the IQAir VMF prioritises security, stability, and safety while enhancing the performance of IQAir’s compact filtration systems. Elevating the IQAir unit above ground can enhance their effectiveness in dealing with pollutants that follow a rising flow pattern, and ensures that units are not tempered with.
The installation of the IQAir Vertical Mount Fixture Kit is straightforward, thanks to the provided step-by-step instructions. This bracket is compatible with most sturdy wall surfaces and does not hinder the replacement of filters, including the PF40 coarse pre-dust filter, while the system remains securely mounted.
The IQAir Vertical Mount Fixture Kit is compatible with following IQAir units:
- Cleanroom Series
- GC and GCX Series
- HealthPro Series
- Dental Series
The IQAir Vertical Mount Fixture Kit can also be used in conjunction with:
- IQAir OutFlow
- IQAir PF40
Material: 1.5mm (1/16”) steel, white powder coated
Measurements (HxWxD):600mm x 410 mm x 385 mm (23.6” x 16.1“ x 15.2”)
Weight: 6.7 kg (14.7 lbs.)
• The interchangeable bottom grille facilitates filter replacement, even when using the PF40 coarse dust pre-filter accessory.
• The widespread fixture points on the wall promote even weight distribution, ensuring stability.
• A straightforward locking mechanism provides security, keeping the IQAir air cleaning system firmly on the wall mount.
Enhancing Air Cleaning Performance:
The vertical mounting of an IQAir system is a practical choice when floor space is limited or the floor-based placement poses challenges. Additionally, it can improve the air cleaning performance of the IQAir air cleaning system, particularly in capturing pollutants with a rising flow pattern.
This setup mimics the effectiveness of a fume hood, making it beneficial in spaces with sources of rising dust, fumes, or vapours. Moreover, the VMF kit is designed to maintain full access to filters while the IQAir air cleaning system remains securely wall-mounted. The removable bottom grille simplifies filter replacement, even when the PF40 coarse dust pre-filter accessory is in use.
With the inclusion of six universal wall plugs and screws suitable for various wall types, the VMF kit offers flexible installation options. The strategic placement of fixture points on the wall ensures stable and secure mounting, and a locking mechanism further enhances safety.
