IQAir Dental Hg

  • Specialist chemical removal
  • Unique HyperHEPA Technology
  • 100% Ozone Free
  • Extra-long Filter Life
  • Trusted by Leading Experts
  • Low Energy Consumption
  • Ultra-quiet Design

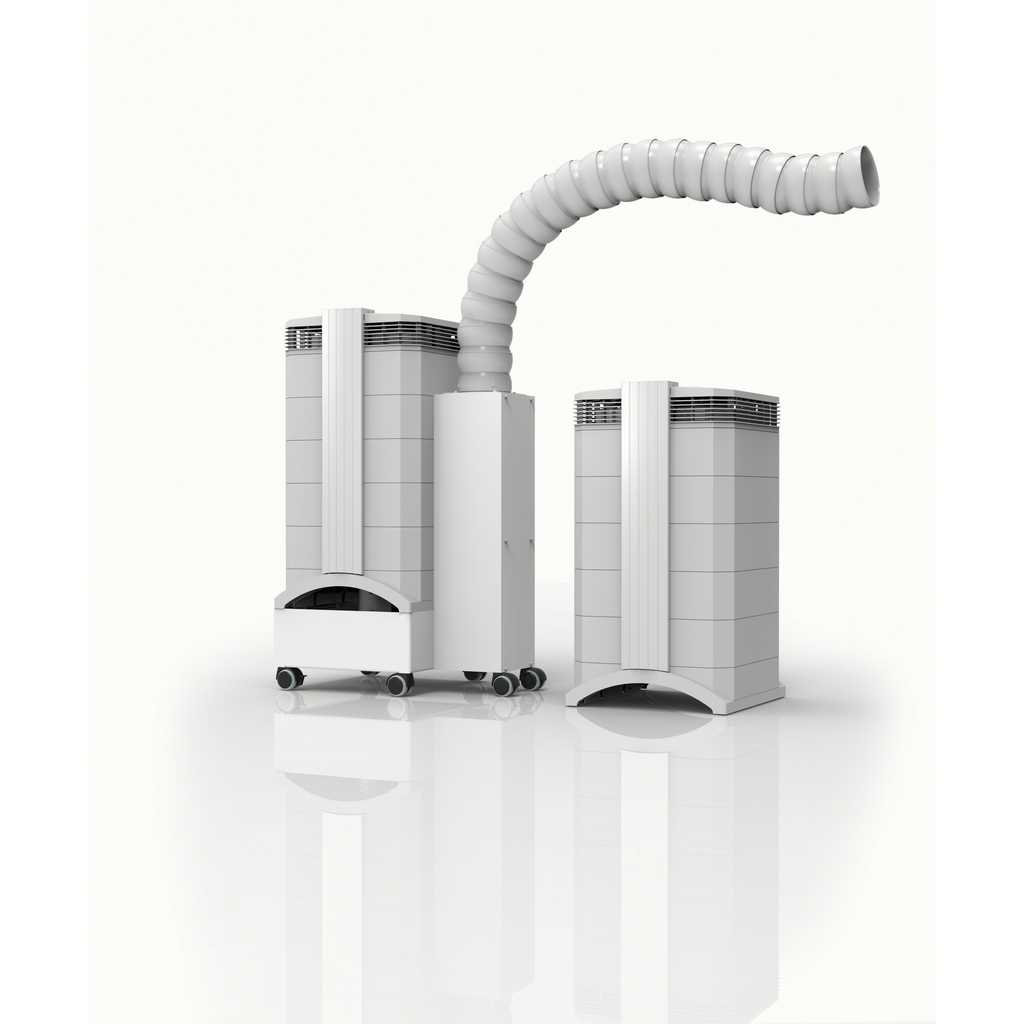

The Dental Hg is predominantly used by dentists who remove significant quantities of amalgam to protect both themselves, their staff and their patients from toxic mercury vapours. The Dental Hg is most commonly used with the FlexVac attachment. The FlexVac allows the dentist to position a suction duct close to the patient's mouth, which has been shown to capture and remove virtually all mercury contamination.

Each Dental Hg is individually tested, certified and guaranteed to remove at least 99% of all particulate, aerosol, allergen and micro-organism pollution 0.3 microns and larger. The Dental Hg is simple to use and requires no maintenance aside from filter changes. Each Dental Hg is designed and manufactured exclusively in Switzerland.

Filtration:99% for particles≥ 0.3 micron (μm)
Airflow Rate:Speed 1 - 50 m3/h
Speed 2 - 90 m3/h
Speed 3 - 150 m3/h
Speed 4 - 220 m3/h
Speed 5 - 280 m3/h
Speed 6 - 400 m3/h
Room Size:Up to: 180m3
Noise Level:LPA =25-57 dB(A) / LWA = 32-67 dB(A)
Dimensions:71 x 38 x 41 cm
Power Usage:20 to 135 watts
Weight:21kg
Filter Service Life:Dental Pro HEPA H11 Class Pre-Filter: 6-12 months

Dental Pro Filter: 12-24 months

Dental Pro Post Filter: 12-24 months
Fan motorcentrifugal, backward curved, with thermal protector, non-stop use approved
Control panel4-key touch-pad with 16 character 2-line LCD display
Air intakedual arches at base of unit
Air outlet320° EvenFlow™ diffuser
Colour of main housing / locking armslight grey / white
Housing materialnon off-gassing, impact-resistant, UV-stabilized ABS
Performance
Total system efficiency (certified)≥ 99% for particles ≥ 0.3 µm (individually tested at highest fan speed)
Air delivery (certified)yes (individually tested with all filters fitted)
Leak testedyes
Features
Display languages4 user-selectable languages: English, French, German, Italian (or Spanish)
Fan speed settings6
Intelligent filter life monitoryes (monitors actual usage of each individual filter)
Filter life status LEDs3
Advanced timeryes (allows programming of operating hours and weekdays)
Advanced fan speed selectionyes (allows programming of different fan speeds for 2 different time periods)
Adjustable filter load indices3 (large dust, chemicals and fine dust)
Supplied accessoriesremote control (incl. battery), power cord with plug, deluxe casters, certificate of performance

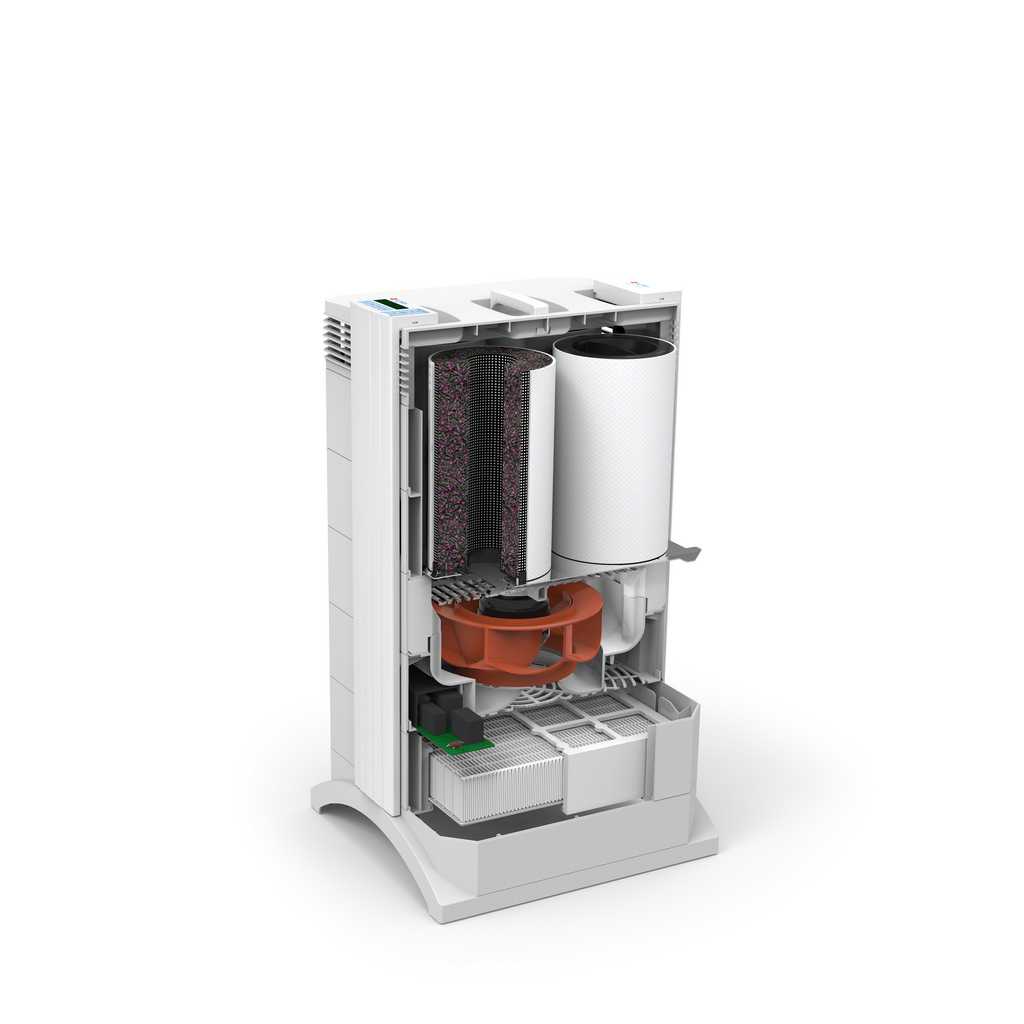

Filtration Stages

The Dental Hg achieves its filtration efficiencies over three filtration stages.

1. Dental Hg Pre-Filter H11 (S)

Removes particulate contamination before it can reach the activated carbon stage, thus extending the filter life.

2. Dental Hg Filter Cartridge Set

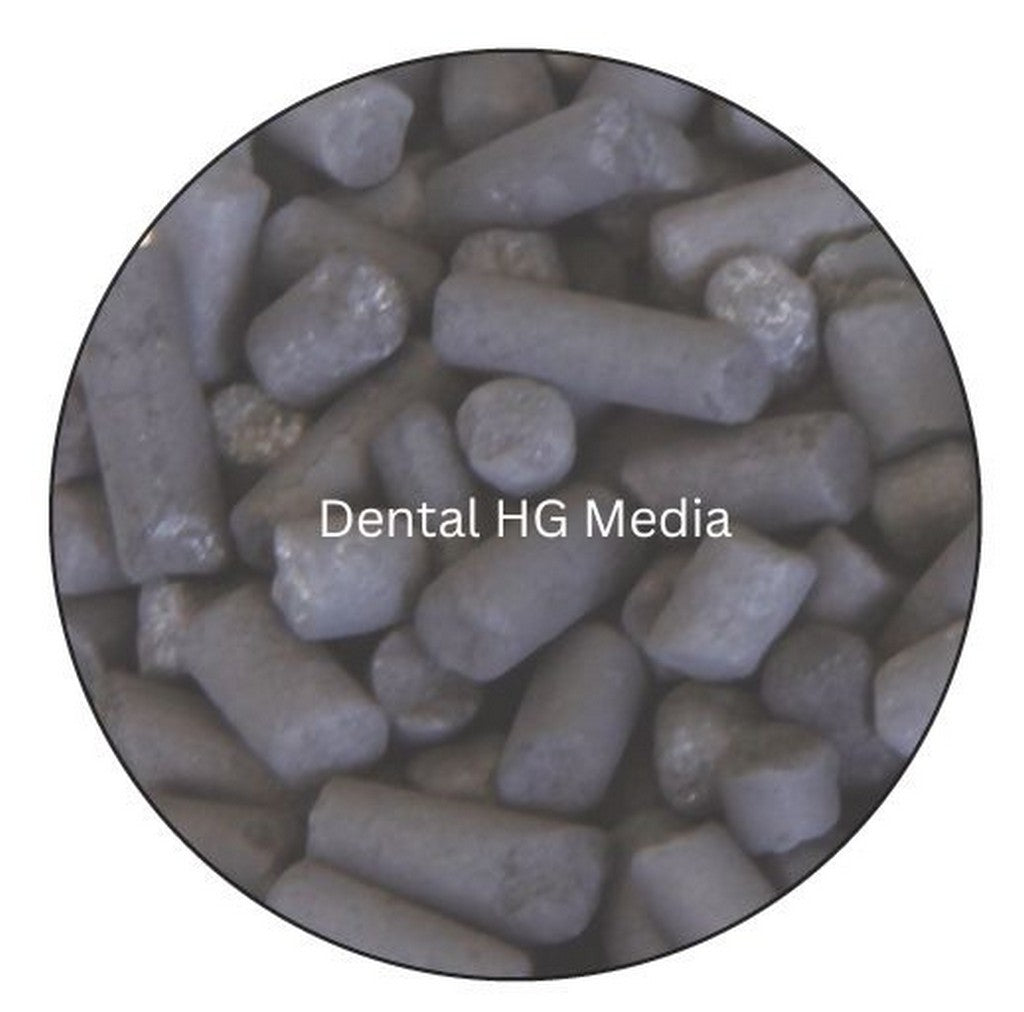

5kg of the highest grade granular impregnated activated carbon (AC/4-S) is housed in four cylindrical shaped cartridges. The large surface area of the cartridges and cylindrical shape promotes high system efficiency.

3. Dental Hg Post-Filter Sleeve Set

The final stage of the three filtration stages adds another HEPA class filter, which stops particles produced as a by-product of stage 2, being release by the system.

Part Codes

IQAir Dental Hg Air Purifier (Includes Filters)

1DA EA0

IQAir Dental Hg HEPA H11 Class Pre-Filter (S)

102 10 12 00

IQAir Dental Hg Filter Cartridge Set

102 40 12 00

IQAir GC Post Filter Sleeve Set

102 50 10 00

Downloads

IQAir Dental Series Product Information

IQAir Dental Series Technical Specifications
