IQAir FlexVac

IQAir FlexVac

Quick Overview

  • Precision filtration captures and filters contaminants at their source.
  • Flexible reach allows adaptable positioning.
  • Universal compatibility with all IQAir filtration systems.
  • Easy installation for quick assembly and mobility.
  • Efficient design saves energy, no need for outdoor venting.
    Find out more View full details

    Collapsible content

    Product Description

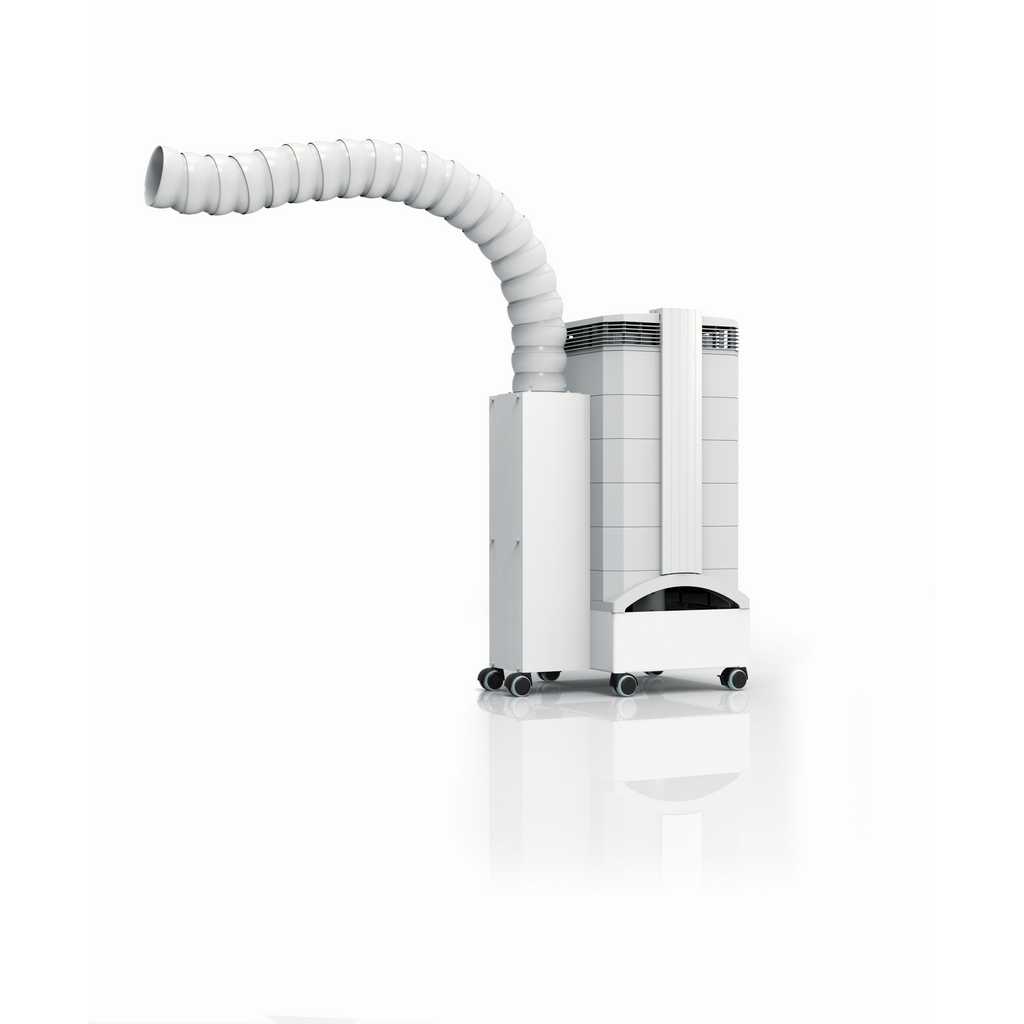

    The IQAir FlexVac converts the IQAir stand-alone filtration units into a mobile self-contained extraction system that allows you to capture gases, fumes, vapours, odours and particulate contamination directly at their source.

    The IQAir Mobile FlexVac is beneficial for a wide range of environments and requirements, such as:

    • Dental surgeries
    • Laboratories,
    • Hospitals
    • Nail Salons
    • Cleanrooms
    • Electronics
    • Construction
    • Manufacturing

    Specifications

    Suction Adapter Material: Powder-coated steel with PVC
    Base Platform Material: Powder-coated steel
    Support Column & Column Cover Material: Powder-coated steel
    FlexAir™ Suction Duct Material: POM plastic
    Typical Suction Velocity: Approximately 5 m/s at an airflow of 250 m³/h
    Horizontal Reach (from center of system): Length: 135 cm
    Vertical Reach (from floor): Length: 195 cm
    Minimum Bend Radius: Approximately 28 cm
    Temperature Range: -25°C to 80°C

    Features


    • Flexible Reach: The IQAir FlexVac features a self-supporting suction duct that extends horizontally up to 1.35 meters (from the centre of the IQAir system) and vertically up to 1.95 meters from the floor. Should you require additional reach, supplemental duct segments are available for effortless extension.
    • Precise Positioning: Its unique FlexAir multisegmented duct consists of 20 interlocking elements, allowing the duct to be flexed and adjusted into any desired position. The sections provide stability and will remain in place until you choose to reposition them.
    • Easy Manoeuvrability: Equipped with six casters, including two lockable ones, the FlexVac ensures swift deployment and uncomplicated positioning. For those who prefer wall-mounted systems, our VM FlexVac kit offers a secure vertical fitting alternative.
    • Durable Construction: Crafted from interlocked polypropylene, the FlexVac's suction duct combines strength and flexibility, facilitating convenient positioning while maintaining stability.
    • Exceptional Suction: Despite its compact size, the IQAir FlexVac delivers outstanding source capture power. With a typical airflow of 250 m³/h, the air velocity in the suction duct reaches approximately 5 m/s, ensuring efficient capture and filtration.
    • Self-Contained Design: The self-contained design of the IQAir extraction system eliminates the need for venting or ducting to the outdoors. This not only enhances mobility but also conserves energy and eliminates costly building modifications.
    • Effortless Assembly: Assembly of the FlexVac kit is straightforward, requiring only 30 minutes, and all essential tools are provided for your convenience.

    IQAir InFlow Compatibility:

    Universal Compatibility: The IQAir FlexVac is compatible with all IQAir filtration devices, ensuring seamless integration into your existing setup. Please note that it is not compatible with accessories like PF40, VMF, VM FlexVac, VM InFlow, and FlexVac.
