IQAir GCX MultiGas

  • IQAir New Edition
  • Hospital-grade virus filtration
  • Ideal for MCS & Tobacco Smoke
  • Non-offgasing UV-stabilised ABS Housing
  • Individually Certified Performance
  • HEPA Filtration
  • 100% Ozone free
  • Ultra-quiet Design
  • Intelligent Filter Life Monitor
  • Low Energy Consumption
  • Best in Class for removal of Tobacco Smoke

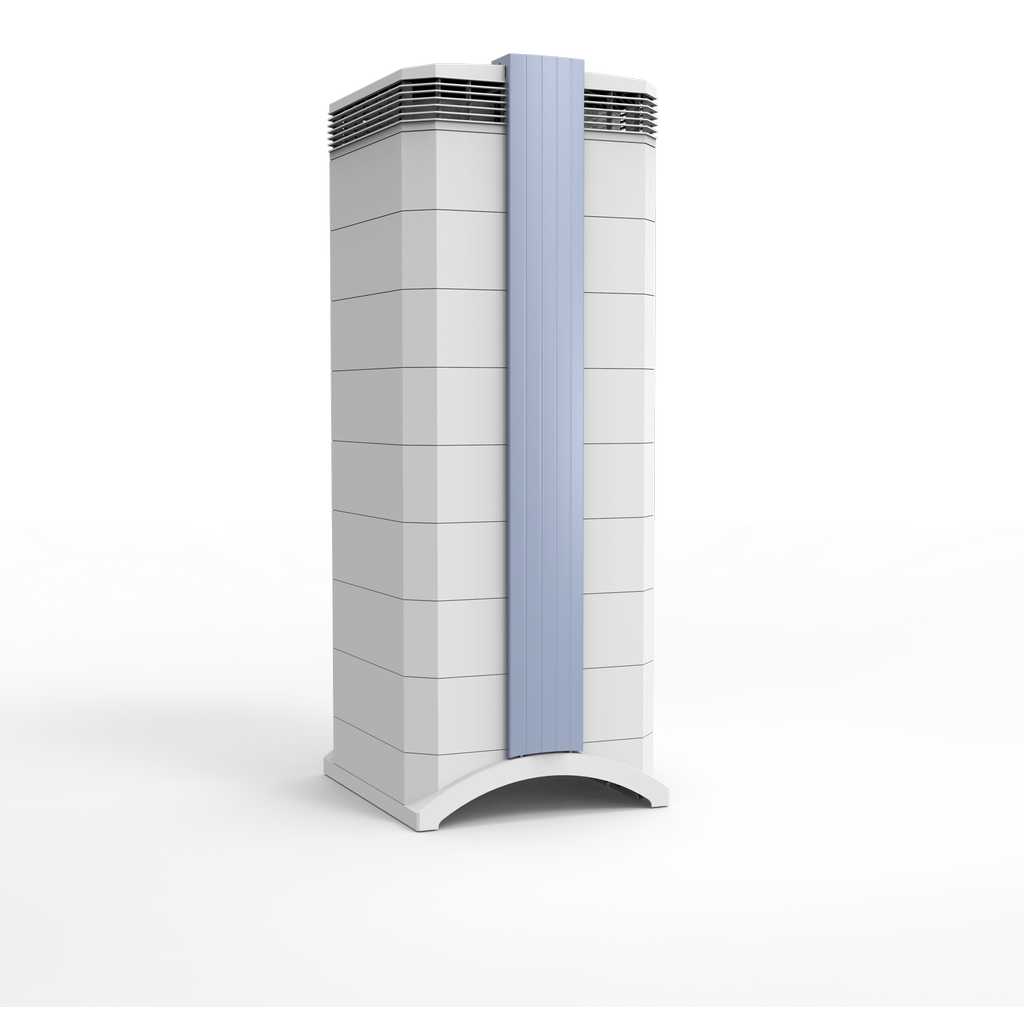

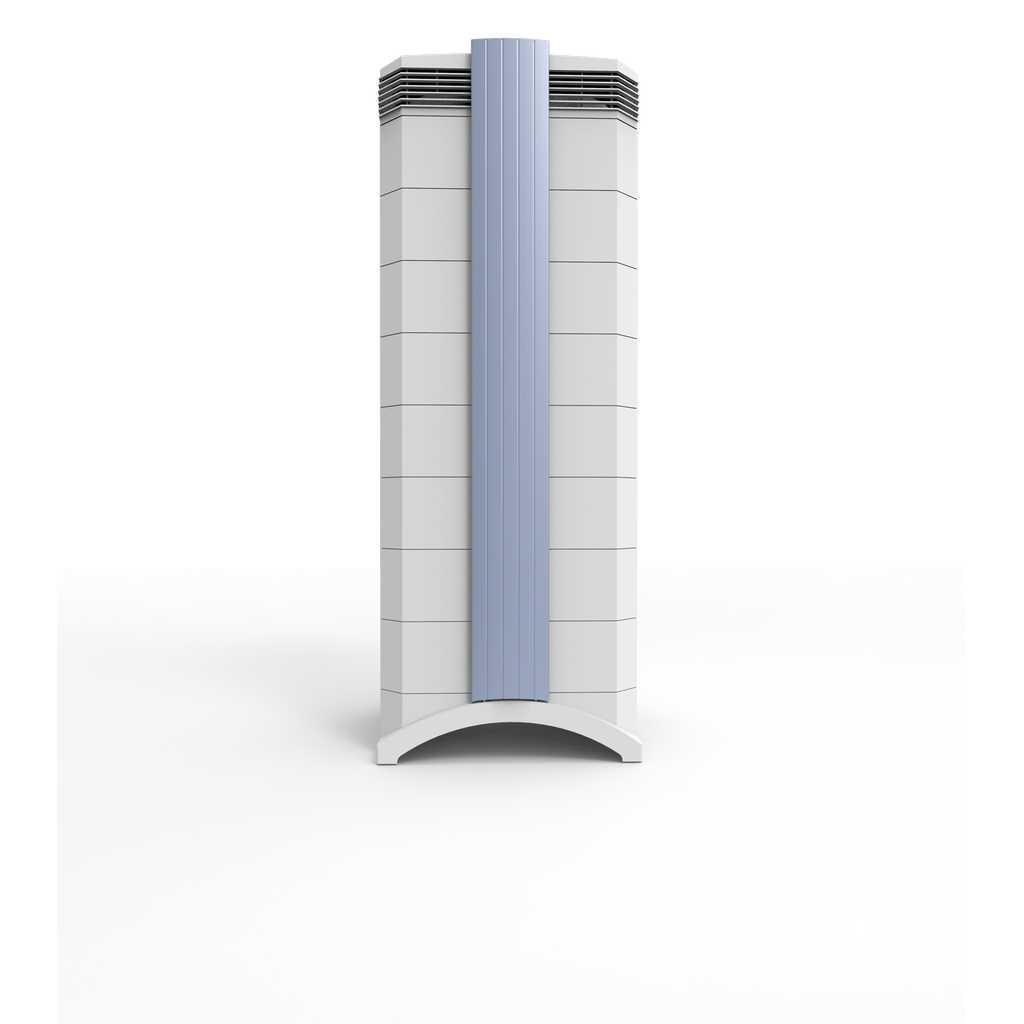

The IQAir GCX MultiGas high-performance air cleaner is the air filtration unit for the control of the broadest range of gas and chemical pollutants.

With a gas filtration module containing 9.8kg of high-quality granulated carbon and impregnated alumina, the GCX MultiGas captures and retains the widest spectrum of chemical and gas pollutants.

Despite standing only 102cm high, the IQAir GCX MultiGas air cleaner has an air displacement capacity of 540m3, delivering significant room air changes very quietly and in a very short period of time.

Filtration:99% for particles ≥ 0.3 micron (μm) and 95% of all particles ≥ 0.003 micron (μm)
Airflow Rate:Speed 1 - 60 m3/h
Speed 2 - 120 m3/h
Speed 3 - 190 m3/h
Speed 4 - 270 m3/h
Speed 5 - 380 m3/h
Speed 6 - 540 m3/h
Room Size:Up to: 270 m3
Noise Level:LPA = 22-57 dBA / LWA = 32-67 dBA
Dimensions:102 x 41 x 38 cm
Power Usage:20 to 135 watts
Weight:28kg
Filter Service Life:Pre-Filter: 18-24 months

MultiGas Cartridge-Filter: 30-42 months

GCX Post-Filter: 30-42 months
Fan motorcentrifugal, backward curved, with thermal protector, non-stop use approved
Control panel4-key touch-pad with 16 character 2-line LCD display
Air intakedual arches at base of unit
Air outlet320° EvenFlow™ diffuser
Colour of main housing / locking armslight grey / blue
Housing materialnon off-gassing, impact-resistant, UV-stabilized ABS
Features
Display languages4 user-selectable languages: English, French, German, Italian (or Spanish)
Fan speed settings6
Anti-tampering arm lockyes
Anti-tampering power cordyes
Intelligent filter life monitoryes (monitors actual usage of each individual filter)
Filter life status LEDs3
Advanced timeryes (allows programming of operating hours and weekdays)
Advanced fan speed selectionyes (allows programming of different fan speeds for 2 different time periods)
Adjustable filter load indices3 (large dust, chemicals and fine dust)
Supplied accessoriesremote control (incl. battery), lockable power cord with plug, certificate of performance

3D Ultra-Seal

The capability of IQAir GCX MultiGas air filtration unit to effectively filter all the air in a room implies that no air bypasses the filters in the unit. The sealing within each filter, the filter to the housing, and the housing itself are an essential requirement.

The innovative IQAir 3D ultra seal edge in groove seal between each filter frame and housing has been developed to ensure perfect seals throughout each IQAir GCX MultiGas air cleaner unit.

Tested and Certified

IQAir individually tests each IQAir GCX MultiGas stand-alone air cleaner to ensure that its performance meets the strict specifications. The results of the tests are noted on a hand-signed Certificate of Performance, which is shipped with every IQAir GCX MultiGas high-performance air filtration system.

New Edition Fan

The new three-dimensionally optimised the design of the IQAir GCX MultiGas air cleaner’s fan uses state-of-the-art aerodynamics to convert energy into more air movement and less noise. Capable of massive air delivery at lower speeds, the units provide exceptional performance at low noise levels.

The fan of the IQAir GCX MultiGas high-performance air filtration system is individually balanced and is suspended in a housing unit that isolates the fan from the housing with eight shock absorbers to further reduce noise.

Standalone

Each IQAir air filtration unit is self-contained, requiring only mains power to operate. This ease of installation, coupled with the ability to move each unit to the location where it is required means that any staff can deploy the unit wherever it is required.

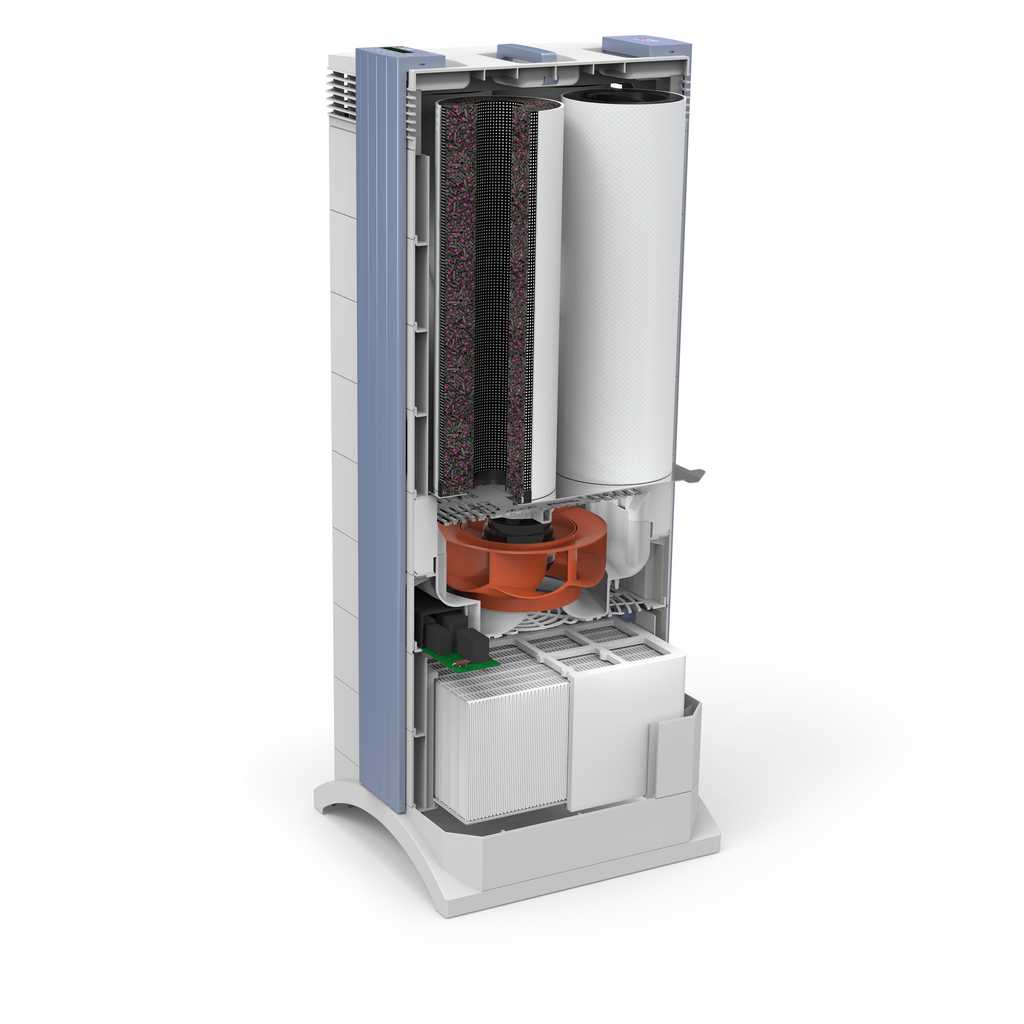

GCX MultiGas Filtration Stages

The GCX achieves its filtration efficiencies over three filtration stages:

1. GCX Pre-Filter H11 (XL)
Removes particulate contamination before it can reach the MultiGas media. This extends the life of the MultiGas media and gives superb protection against particulate contamination.

2. GCX MultiGas Cartridge-Filter Set
9.8kg of the highest grade granular activated carbon and potassium permanganate impregnated alumina is housed in four cylindrical shaped cartridges. The large surface area of the cartridges and cylindrical shape promotes high system efficiency.

3. GCX Post-Filter Sleeve Set
The final stage of the three filtration stages adds another HEPA class filter which stops particles, produced as a by-product of stage 2, being released by the system.

Gas Control List

The IQAir GCX MultiGas Filters capture and retain:

Acetic acidIsopropanol
AcetoneMethanol
ButadieneMethyl acrylate
Butyric acidMethyl disulphide
Carbon disulphideMethyl sulphide
Chlorine dioxideMethylamine
CresolNitroglycerine
DiethylamineOzone
EthanolPhenol
Ethyl acetateSkatol
EthylamineStyrene
FormaldehydeSulfur trioxide
Formic acidTrichloroethylene
Hydrogen chlorideTriethylamine
IsopreneVinyl chloride
