The IQAir Cleanroom H13 hospital air cleaning system is specifically designed for the removal of all solid and liquid airborne particles and aerosols. It has an individually tested, certified and guaranteed filtration efficiency of HEPA H13, and the HEPA replacement filters are classified according to EN1822 H13.
The IQAir Cleanroom H13 air cleaner is used for airborne infection control in healthcare settings and the control of particulate matter in cleanroom type applications.
It’s large, high capacity filtration media enables the IQAir Cleanroom H13 to deliver more ultra-clean air than any comparable air cleaner. The unit is ideal for patient environments or any other application where 24/7 high-performance filtration is required.
| Filtration: | 99.97% for particles ≥ 0.3 micron (μm) |
| Airflow Rate: | Speed 1 - 65 m3/h |
| Speed 2 - 120 m3/h | |
| Speed 3 - 190 m3/h | |
| Speed 4 - 270 m3/h | |
| Speed 5 - 370 m3/h | |
| Speed 6 - 530 m3/h | |
| Room Size: | Up to: 265m3 |
| Noise Level: | LPA = 22-57 dBA / LWA = 32-67 dBA |
| Dimensions Without / With Packaging: | 82 x 41 x 38 cm / H 94 x W 45 x D 48 cm |
| Power Usage: | 20 to 135 watts |
| Weight: | 21kg |
| Filter Service Life: | PreMax Filter F8 (XL): 12 months (approx) |
| HyperHEPA Filter H13 (XL): 24-36 months (approx) | |
| Fan motor | centrifugal, backward curved, with thermal protector, non-stop use approved |
| Control panel | 4-key touch-pad with 16 character 2-line LCD display |
| Air intake | dual arches at base of unit |
| Air outlet | 320° EvenFlow™ diffuser |
| Colour of main housing / locking arms | light grey / green |
| Housing material | non-offgasing, impact-resistant, UV-stabilized ABS |
| Performance | |
| MPPS efficiency (according to EN1822) | ≥ 99.95% at airflow rate ≤ 190 m3/h; ≥ 99.5% at airflow rate ≤ 475 m3/h |
| Total system efficiency (certified) | ≥ 99.97% for particles ≥ 0.3 micron (µm) |
| Air delivery (certified) | yes |
| Leak tested | yes |
| Features | |
| Display languages | 4 user-selectable languages: English, French, German, Italian (or Spanish) |
| Fan speed settings | 6 |
| Anti-tampering arm lock | yes |
| Anti-tampering power cord | yes |
| HEPA replacement filter tested & certified | yes (test certificate supplied with replacement filter) |
| Intelligent filter life monitor | yes (monitors actual usage of each individual filter) |
| Filter life status LEDs | 2 |
| Advanced timer | yes (allows programming of operating hours and weekdays) |
| Advanced fan speed selection | yes (allows programming of different fan speeds for 2 different time periods) |
| Adjustable filter load indices | 2 (large dust and fine dust) |
All IQAir Cleanroom H13 filtration units are individually tested and certified for their high whole system filtration efficiency, and each HyperHEPA H13 particulate filter is also tested and certified for its high efficiency.
Each filter in the IQAir Cleanroom H13 air cleaner uses a micro pleat filtration media with solvent-free separators, capturing and retaining the most harmful particles in the air with a filtration efficiency of up to 99.95% at 0.0003 µm.
The anti-microbial treated filters also effectively destroy microorganisms such as bacteria, fungi and protozoans, making the IQAir Cleanroom H13 air cleaner ideal for all healthcare applications.
Conventional air cleaners return filtered air into the environment through a small, noisy outlet. The IQAir Cleanroom H13 is designed with a 320-degree EvenFlow™ Diffuser to supply more air in more directions without draughts or noise.
This wide dispersion pattern allows the IQAir Cleanroom H13 air cleaner to produce a high air delivery rate with very little disruption to the airflow in a room.
IQAir Cleanroom H13 air filtration systems are standalone units, which operate independently with existing HVAC environments. They enable localised control of specific problems wherever they occur. Temporary deployment is achieved without installation due to the “plug and play” nature of the units.
The IQAir Cleanroom H13 high-performance air cleaning units can be equipped with a range of accessories for use in the specific applications found in the healthcare sector. The IQAir InFlow attachment enables the IQAir Cleanroom H13 unit to create a positive pressure isolation room. The InFlow duct can also be connected to external through wall ventilation, providing a positive pressure isolation room with minimal building works and associated disruption.
The IQAir VM InFlow attachment combines the InFlow attachment with a wall mount, for secure and convenient installation.

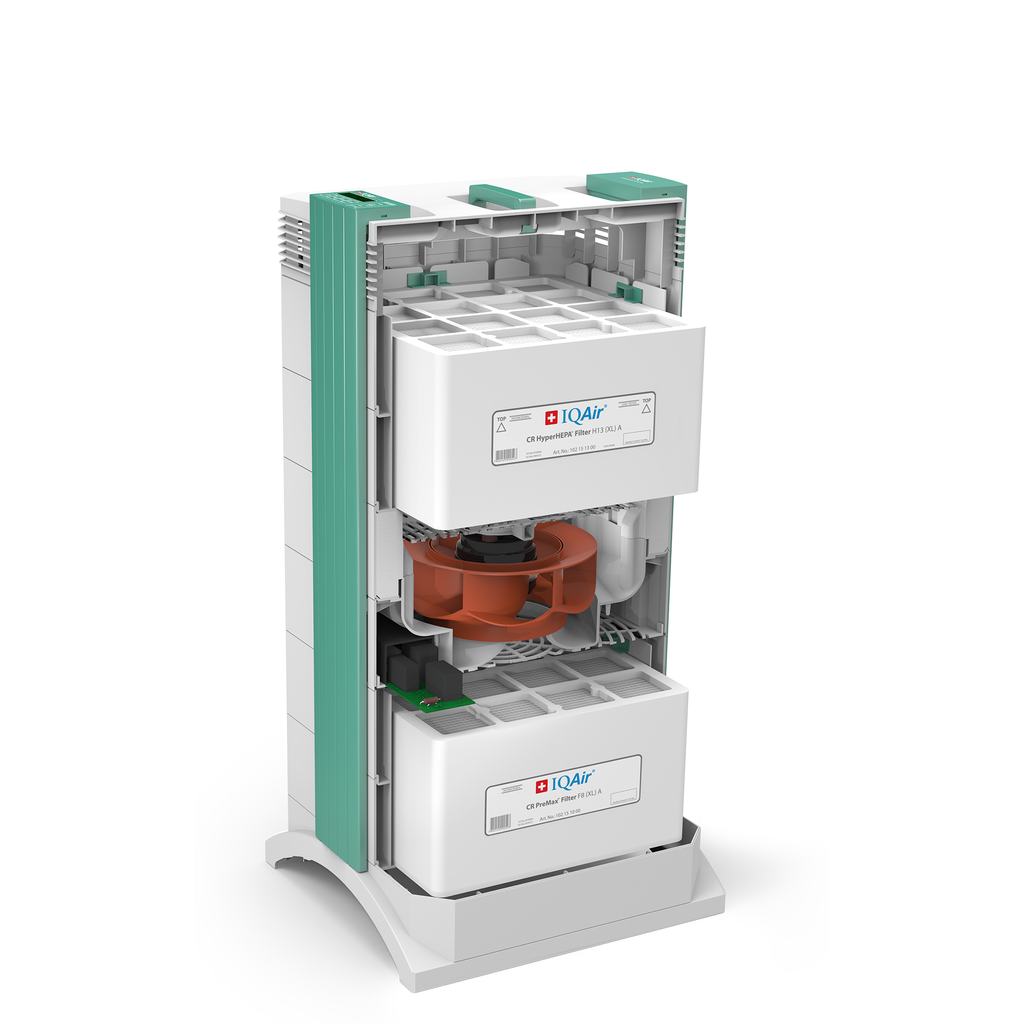

Filtration Stages
The Cleanroom H13 removes particulate pollution over two filtration stages:
1. Anti-Microbial PreMax Filter F8 (XL)
The Anti-Microbial PreMax Filter removes coarse and fine particulate matter, thus protecting subsequent stages.
2. Anti-Microbial HyperHEPA Filter H13 (XL)
The Anti-Microbial HyperHEPA stage removes at least 99.97% of all particulate pollution 0.3 microns and larger. The H13 uses a larger PreMax filter than the Cleanroom 100 or 250 MG, which either extends the filter life or allows for higher contamination levels.
Part Codes
IQAir Cleanroom H13 Air Purifier (Includes Filters) | 1EB ED0 |
IQAir Cleanroom H13 Anti-Microbial PreMax Filter F8 (XL) | 102 14 10 00 |
IQAir Cleanroom H13 Anti-Microbial HyperHEPA Filter H13 (XL) | 102 16 13 00 |
