VM FlexVac for IQAir
VM FlexVac for IQAir
Quick Overview
Wall-mounted source-capture kit with self-supporting flexible suction arm for IQAir devices. Captures gases, fumes, vapours, odours and dust particles at source.
Ideal for dental clinics (especially with IQAir Dental Hg), laser surgery, laboratories, cleanrooms, soldering & electronic workstations, art-work restauration etc..
Collapsible content
Product Description

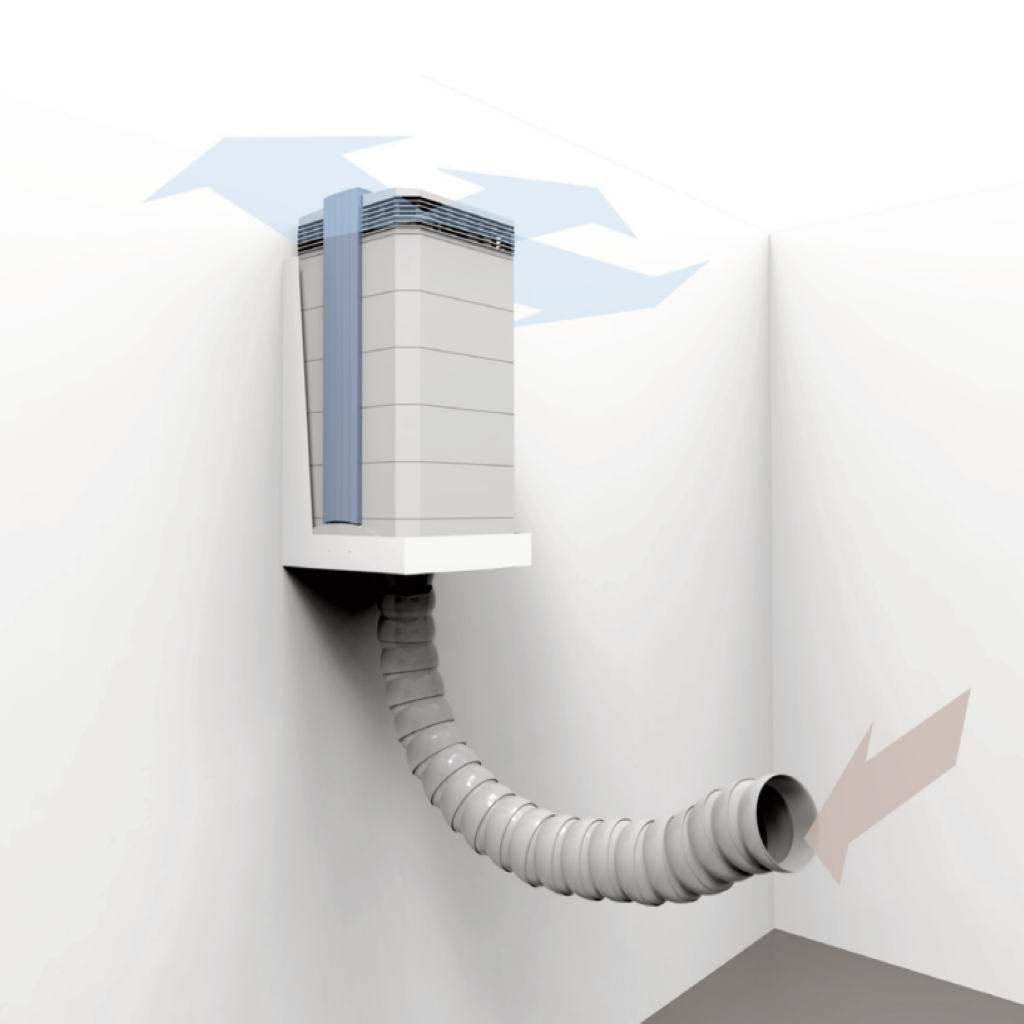

The VM FlexVac converts any compact IQAir air cleaning system into a wall-mounted, self-contained
extrac tion-at-source system. It can be used to capture fumes, dust and vapours at the source, thus
reducing the amount of pollutants spreading to the ambient air.
Specifications
Wall Mount
• Material: 1.5 mm (0.06") steel, white powder coated
• Measurements: 600 x 410 x 385 mm (24"x16”x15")
• Weight: 6.7 kg (14.8 lbs)
Suction Duct
• Material: Polyoxymethylene (POM), grey
• Diameter: 125 mm (5")
• Length: 1200 mm (47")
• Max. horizontal reach: approx. 1000 mm (40")
• Min. bending radius: approx. 360 mm (14")
Features
The VM FlexVac is designed so that all filters remain fully serviceable while the IQAir system remains wall mounted. A locking mechanism ensures that the air cleaner is safely secured within the wall mount.
Optionally, the control panel can be mounted on the side of the wall mount. This side-mounted control panel option (SMC) is available only for GC and Cleanroom Series models and must be specified at the time of order of the IQAir system. The SMC cannot be retro fitted.
