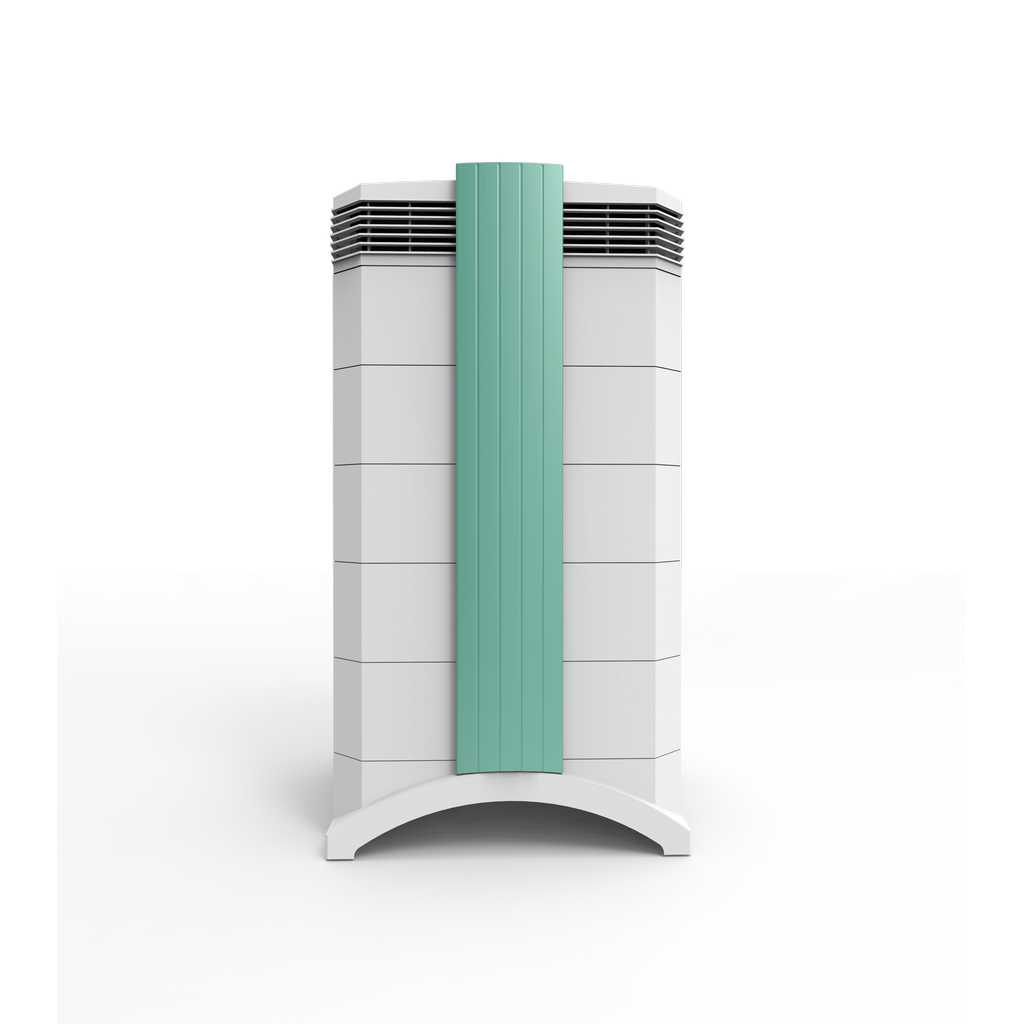

IQAir Cleanroom 250

  • Individually Certified Performance
  • Unique HyperHEPA Technology
  • Hospital grade virus filtration
  • 100% Ozone Free
  • Extra-long Filter Life
  • Trusted by Leading Experts
  • Low Energy Consumption
  • Ultra-quiet Design

The IQAir Cleanroom 250 hospital air cleaner offers HEPA H13 particulate filtration as well as high-quality gas and odour filtration for the effective control of the broadest range of airborne contamination.

Individually tested anti-microbial HyperHEPA filters set the Cleanroom Series apart from all other mobile air cleaners. The anti-microbial filters destroy microorganisms such as bacteria, fungi, and protozoans on contact.

The IQAir Cleanroom 250 air cleaner has anti-tampering arms and an intelligent microchip-controlled filter life monitor.

Filtration:99.97% for particles ≥ 0.3 micron (μm)
Airflow Rate:Speed 1 - 55 m3/h
Speed 2 - 100 m3/h
Speed 3 - 170 m3/h
Speed 4 - 250 m3/h
Speed 5 - 320 m3/h
Speed 6 - 450 m3/h
Room Size:Up to: 225m3
Noise Level:LPA = 22-57 dB(A) / LWA = 32-67 dB(A)
Dimensions:71 x 41 x 38 cm
Power Usage:20 to 135 watts
Weight:16kg
Filter Service Life:PreMax Filter F8 (S): 12 months (approx)
V5-Cell: 24 months (approx)
HyperHEPA Filter H13 (L): 24-36 months
Fan motorcentrifugal, backward curved, with thermal protector, non-stop use approved
Control panel4-key touch-pad with 16 character 2-line LCD display
Air intakedual arches at base of unit
Air outlet320° EvenFlow™ diffuser
Colour of main housing / locking armslight grey / green
Housing materialnon-offgasing, impact-resistant, UV-stabilized ABS
Performance
MPPS efficiency (according to EN1822)≥ 99.95% at airflow rate ≤ 190 m3/h; ≥ 99.5% at airflow rate ≤ 475 m3/h
Total system efficiency (certified)≥ 99.97% for particles ≥ 0.3 micron (µm)
Air delivery (certified)yes
Leak testedyes
Features
Display languages4 user-selectable languages: English, French, German, Italian (or Spanish)
Fan speed settings6
Anti-tampering arm lockyes
Anti-tampering power cordyes
HEPA replacement filter tested & certifiedyes (test certificate supplied with replacement filter)
Intelligent filter life monitoryes (monitors actual usage of each individual filter)
Filter life status LEDs3

Advanced Multi-Stage Filtration

The modular design of the IQAir Cleanroom 250 hospital air cleaner is engineered to deliver maximum effectiveness across a wide range of contaminants.

Dependent on filtration requirements, the IQAir Cleanroom 250 gas stage filtration can be specified for either broad spectrum filtration with the V5 Cell MG or a range of specialist application filters. For particularly dusty environments an initial coarse particle filter is available to protect each subsequent filter.

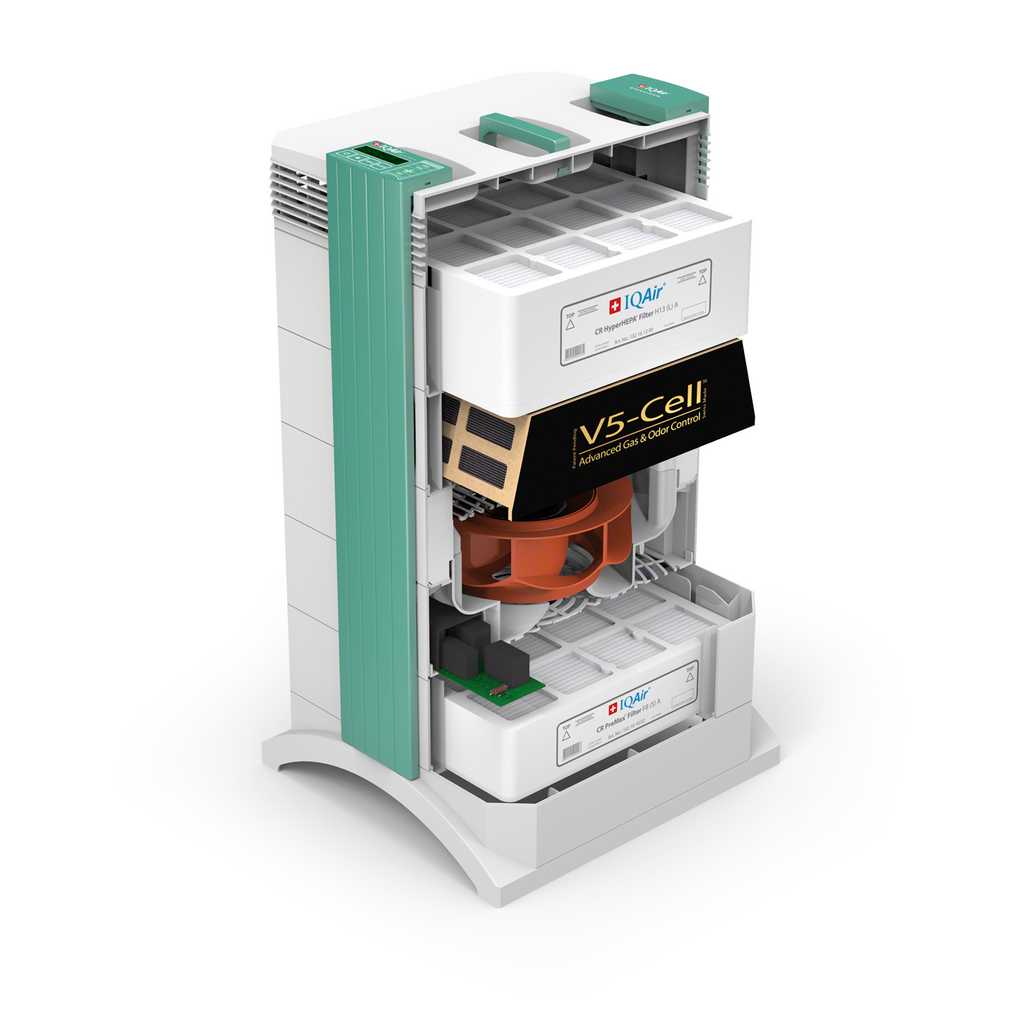

Individual Filter Stages

Micro-Particle  Air is drawn into the Pre-Max™ Pre-Filter of the IQAir Cleanroom 250 hospital air cleaner, capturing and retaining particulates such as coarse and fine dust, pollen, and mould spores, and protecting subsequent filters.

Granular Activated Carbon  The IQAir Cleanroom 250 hospital air cleaner’s V5-Cell™ Gas & Odour Filter uses granular activated carbon absorption to eliminate a wide range of volatile organic compounds and other harmful chemicals and gases.

HyperHEPA  The H13 anti-microbial HyperHEPA filter used in the IQAir Cleanroom 250 eliminates fine and ultrafine particles, including bacteria, viruses and combustion particles.

3D Ultraseal

The capability of an air filtration unit to effectively filter all the air in a room implies that no air bypasses the filters. The sealing within each IQAir Cleanroom 250 filter, the filter to the housing, and the housing itself are an essential requirement.

The innovative IQAir 3D ultra seal edge in groove seal between each filter frame and housing has been developed to ensure perfect seals throughout each IQAir Cleanroom 250 hospital air cleaner unit.

Tested and Certified

IQAir individually tests each IQAir Cleanroom 250 stand-alone air cleaning system to ensure that its performance meets the strictest specifications. The results of the tests are noted on a hand-signed Certificate of Performance, which is shipped with every IQAir Cleanroom 250 hospital air cleaner.

Not only the IQAir Cleanroom 250 but also the filters in the IQAir Cleanroom 250 are individually tested and certified. IQAir's HyperHEPA filtration is tested and certified by an independent third-party lab to effectively filter harmful ultrafine pollution particles down to 0.003 microns in size. This is 100 times smaller than achieved with ordinary air filtration technology and 10 times smaller than a virus.

Filtration Stages

The Cleanroom 250 removes particulate pollution over three filtration stages:

1. IQAir Cleanroom 250 Anti-Microbial PreMax Filter F8 (S)
The Anti-Microbial PreMax Filter removes coarse and fine particulate matter, thus protecting subsequent stages.

2. IQAir Cleanroom 250 V5-Cell Gas & Odour Filter
The V5-Cell MultiGas Filter uses 2.5kg of activated carbon and impregnated activated alumina to remove a broad spectrum of chemical and odour contamination. The 250 can also be fitted with VOC, ChemiSorber and AM media options to meet with your requirements.

3. IQAir Cleanroom 250 Anti-Microbial HyperHEPA Filter H13 (L)
The Anti-Microbial HyperHEPA stage removes at least 99.97% of all particulate pollution 0.3 microns and larger.

Part Codes

IQAir Cleanroom 250 Air Purifier (Includes Filters)

1EG ED0

IQAir Cleanroom 250 Anti-Microbial PreMax Filter F8 (S)

102 10 10 02

IQAir Cleanroom 250 V5-Cell MultiGas

102 18 10 00

IQAir Cleanroom 250 V5-Cell VOC

102 18 12 00

IQAir Cleanroom 250 V5-Cell ChemiSorber

102 18 11 00

IQAir Cleanroom 250 V5-Cell AM

102 18 13 00

IQAir Cleanroom 250 V5-Cell Hg

102 18 14 00

IQAir Cleanroom 250 Anti-Microbial HyperHEPA Filter H13 (L)

102 16 13 00

Downloads

Cleanroom Infection Control

Cleanroom Series Accessories

Cleanroom 250 MG Technical Specifications
