IQAir Cleanroom 100
IQAir Cleanroom 100
Quick Overview
- Individually certified performance
- EN 1822 classified filtration efficiency
- Temper-proof design
- Designed to improve ventilation rate
- Hospital grade virus filtration
- 100% ozone free technology
- Economical, low maintenance operation
- Compatible to create over- & under-pressure
- Ultra-quiet design
Collapsible content
Product Description

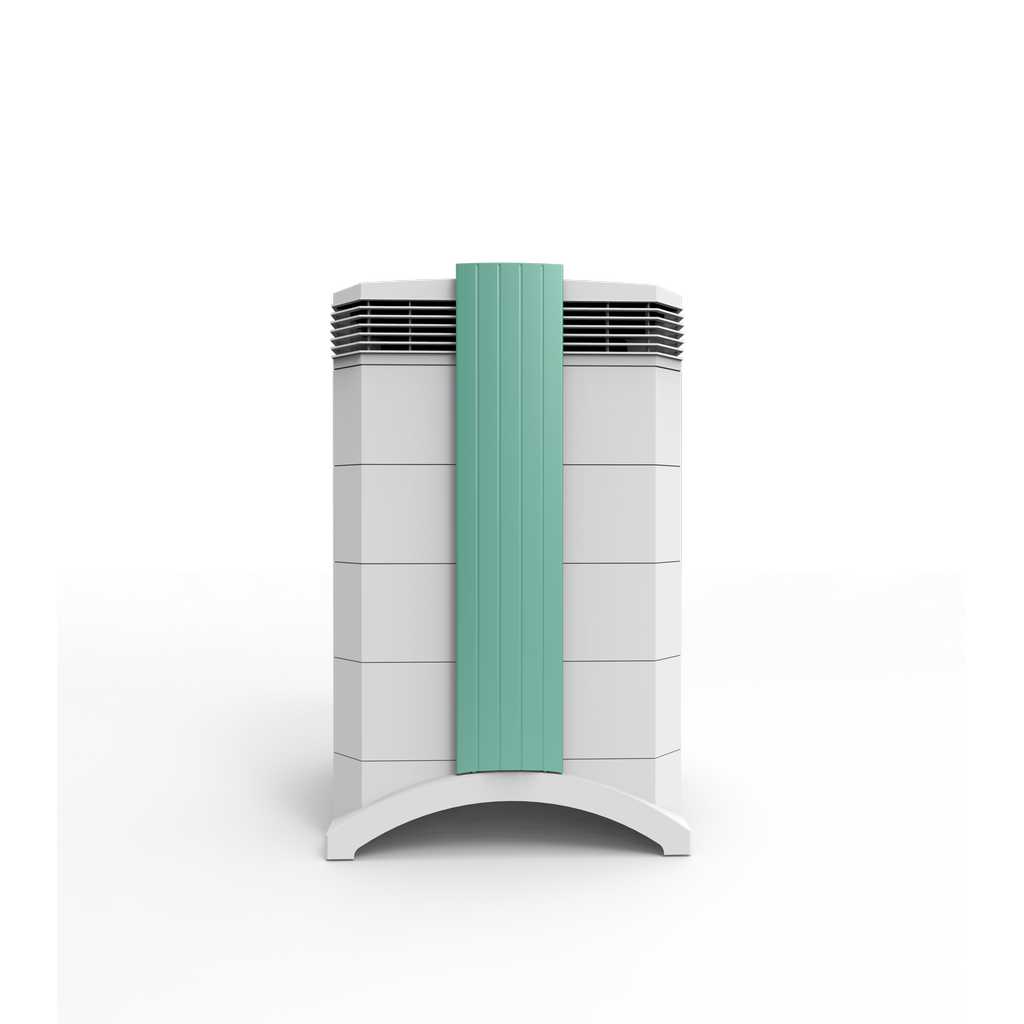

IQAir Cleanroom 100 - Medical-Grade Air Filtration
The IQAir Cleanroom 100 is a compact, mobile, and easy-to-set-up medical-grade air filtration unit. It's a "plug and play" HEPA filtration solution specifically designed to effectively control antimicrobial airborne contamination.
Key Features:
- Perfect for local targeted control of particulate contamination, including bacteria, viruses, and mold.
- Designed for healthcare settings, making it suitable for various indoor medical environments.

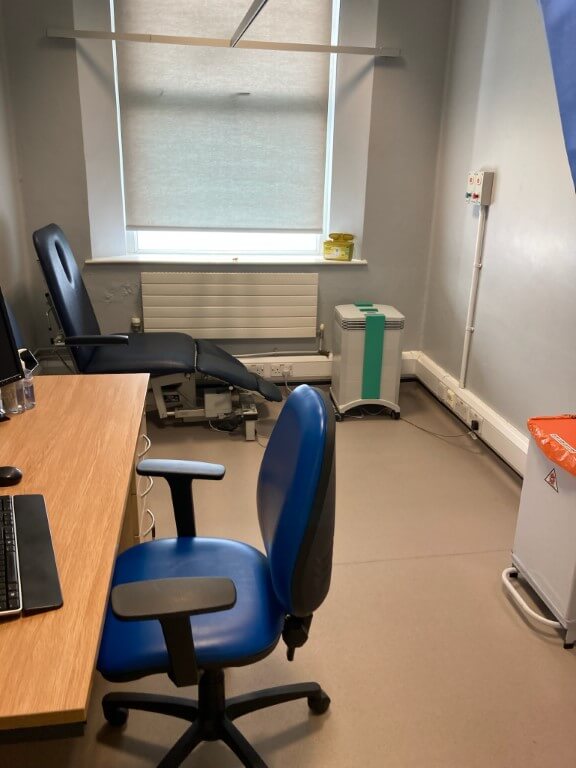

- An ideal solution for situations where the HVAC (Heating, Ventilation, and Air Conditioning) system is providing poor performance and inadequate ventilation in hospital and other healthcare settings.
Specifications
Certified Filtration: | ≥ 99.97% for particles ≥ 0.3 micron (μm) ≥ 99.5% for particles ≥ 0.003 micron (μm) |
Airflow Rate: | Speed 1 - 60 m³/h |
Speed 2 - 100 m³/h | |
Speed 3 - 170 m³/h | |
Speed 4 - 260 m³/h | |
Speed 5 - 350 m³/h | |
Speed 6 - 500 m³/h | |
Room Size: | Small to Large Rooms |
Sound Pressure: | LPA 1: 22, 2: 33, 3: 41, 4: 47, 5: 52, 6: 57 dB(A) / LWA 1: 32, 2: 43, 3: 51, 4: 57, 5: 62, 6: 67 dB(A) |
Dimensions: | H 61 x W 38 x D 41 cm / carton: H 74 x W 43 x D 45 cm; H 24 x W 15 x D 16.2 / carton: H 30 x W 17 x D 17.8 inches |
Particle Filter Type: | CR HyperHEPA H13 (L) AM High-capacity, antimicrobial, hospital-grade HEPA filter (class H13) for the control of fine & ultra-fine particulate matter and microorganisms (incl. fungal spores, bacteria and viruses) |
Surface area F8 Filter: | 2.8 m² / 30.2 sq ft (antimicrobial) |
Surface area H13 Filter: | 5.5 m² / 59.2 sq ft (antimicrobial) |
Power Usage: | 20 to 135 watts |
Weight: | 12kg / 16kg; 36.5/35.3 lbs (without / with packaging) |
Average Filter Service Life: | Pre-Filter: 9 - 15 months HyperHEPA Filter: 30-42 months |
Warranty: | 1-year manufacturer warranty |
Country of Manufacture: | Switzerland |
Fan motor | centrifugal, backward curved, with thermal protector, non-stop use approved |
Control panel | 4-key touch-pad with 16 character 2-line LCD display |
Air intake | dual arches at base of unit |
Air outlet | 320° EvenFlow™ diffuser |
Colour of main housing / locking arms | light grey / green |
Housing material | non-offgassing, impact-resistant, UV-stabilized ABS |
Air delivery (certified) | Yes |
Leak tested | Yes |
Display languages | 4 user-selectable languages: English, French, German, Italian (or Spanish) |
Fan speed settings | 6 |
Anti-tampering arm lock | Yes |
Anti-tampering power cord | Yes |
HEPA replacement filter tested & certified | yes (test certificate supplied with replacement filter) |
Intelligent filter life monitor | Yes (monitors actual usage of each individual filter) |
Filter life status LEDs | 2 |
Advanced timer | Yes (allows programming of operating hours and weekdays) |
Advanced fan speed selection | Yes (allows programming of different fan speeds for 2 different time periods) |
Adjustable filter load indices | 2 (large dust and fine dust) |
Features
Standalone

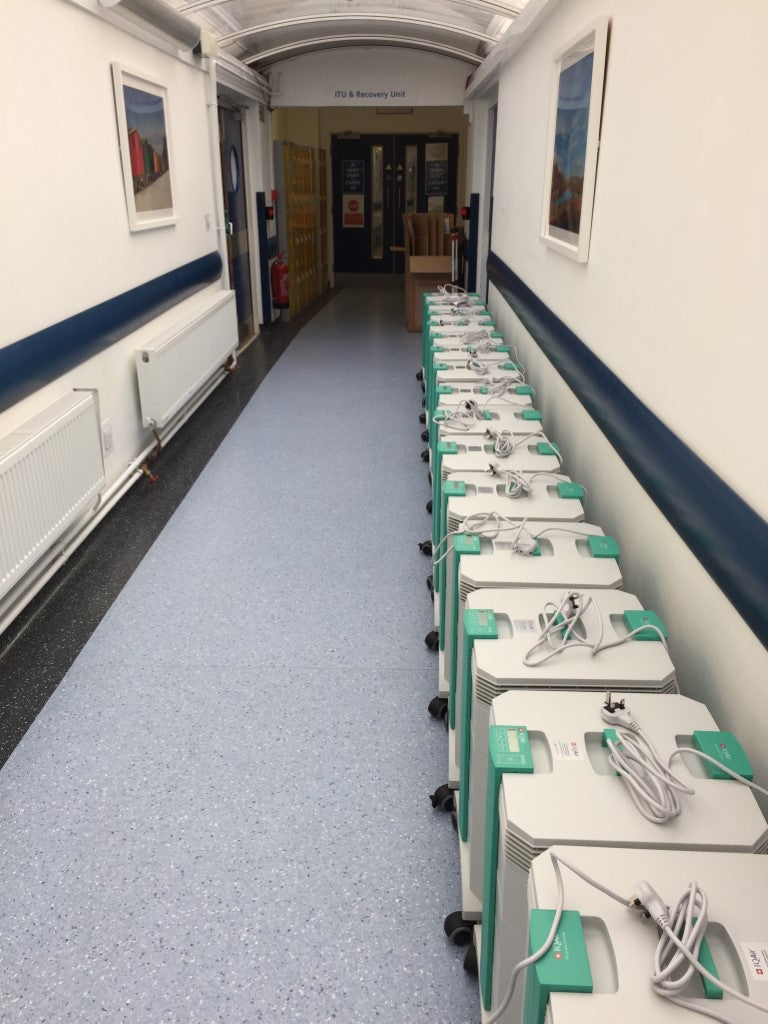

The IQAir Cleanroom 100 air filtration unit is self-contained, requiring only mains power to operate. This ease of installation, coupled with the ability to move each unit to the location where it is needed, allows all hospital staff to deploy the unit to control critical airborne hygiene issues.
Compact

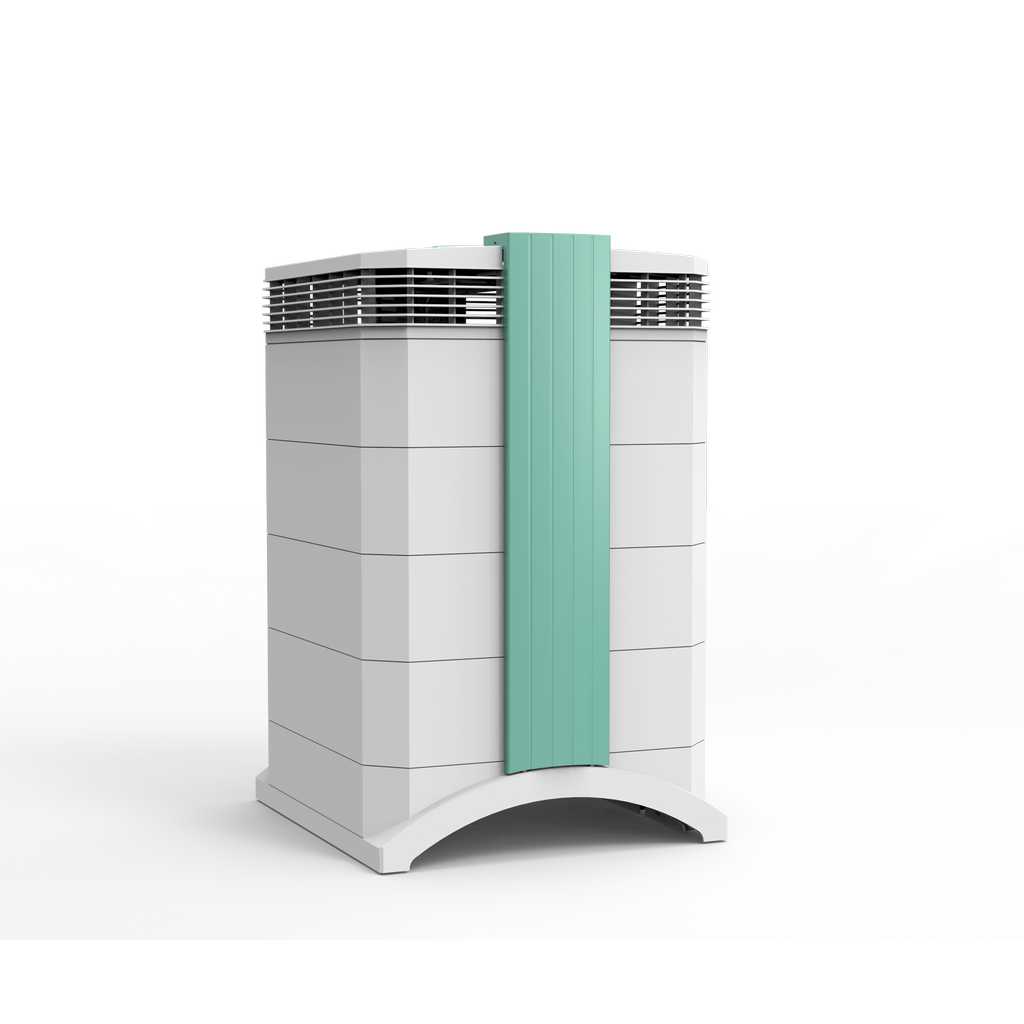

Despite its minimal dimensions, the IQAir Cleanroom 100, at only 61cm tall, can be easily accommodated even in the smallest of patient rooms. It boasts a high airflow rate of up to 500 m³/h. When floor space is limited, you can easily mount the IQAir Cleanroom 100 air cleaner on the wall using the VMF wall mount kit. For added convenience, the control panel can be side-mounted.
Anti-Tamper
Prevent unauthorized tampering with the IQAir Cleanroom 100 air cleaner's filters and power connection. A secure arm-locking fixture prevents unauthorized access to or removal of the system filters. A separate power inlet fixture locks the IQAir Cleanroom 100's power lead, preventing unauthorized unplugging of the power lead at the base of the system. The control panel of the IQAir Cleanroom 100 air cleaner can also be locked to avoid unwanted tampering with the settings. The lock function is indicated by a star symbol on the LCD display.
Intelligent Filter Life Monitor
The IQAir Cleanroom 100 air cleaning system is equipped with an electronic 'Filter Life Monitor' that calculates the remaining life of the system's filters. Unlike other manufacturers that quote a fixed filter life without considering pollution levels, fan speed, or actual operating time, the IQAir Cleanroom 100 air cleaning system monitor calculates the remaining filter life based on past and likely future use under specific conditions, thanks to its internal database of filter life.
Filter Status Display
The predicted life of each individual filter is displayed on the LCD display of the IQAir Cleanroom 100 in remaining hours of use. This information complements the filter life LEDs and aids in scheduling maintenance.
Filtration Technology

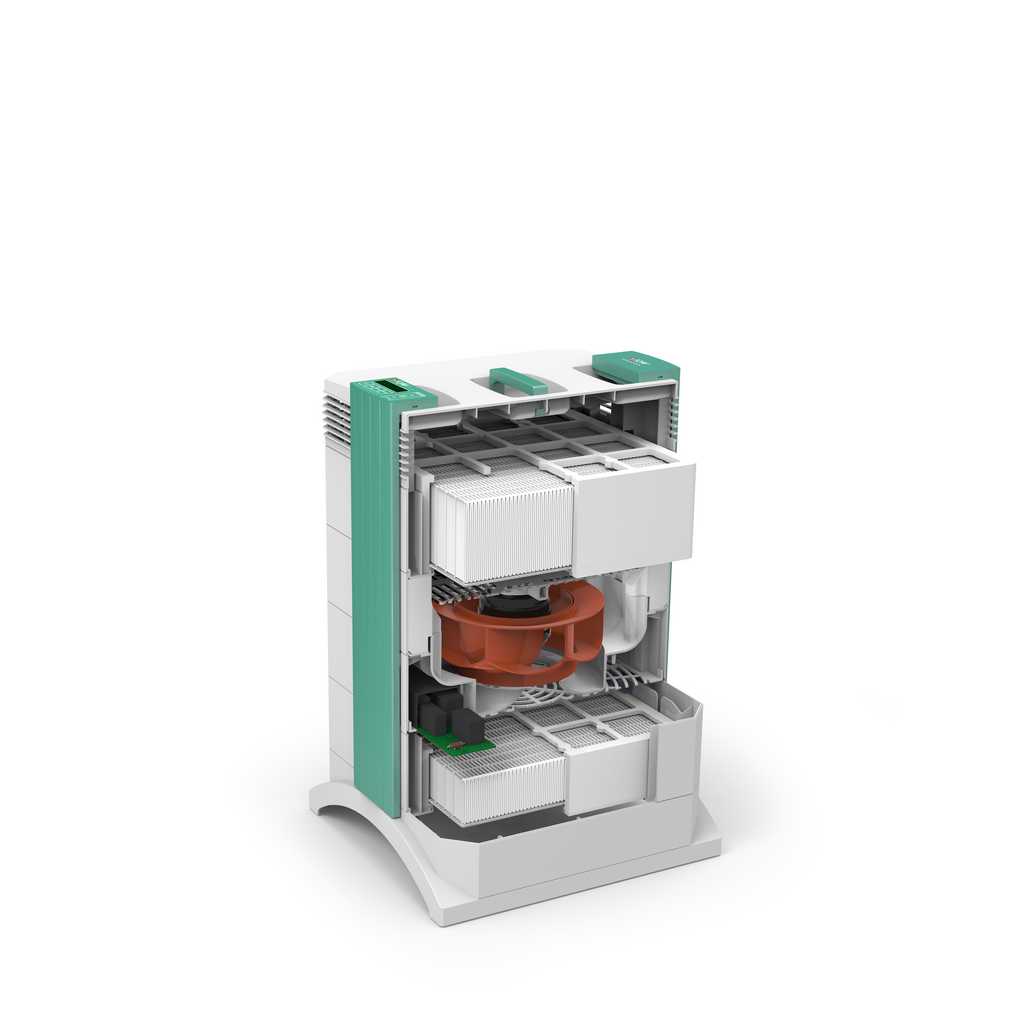

Filtration Stages
The Cleanroom 100 operates in two filtration stages:
1. IQAir Cleanroom 100 Anti-Microbial PreMax Filter F8 (S)
The Anti-Microbial PreMax Filter removes coarse and fine particulate matter, thereby safeguarding subsequent stages.
2. IQAir Cleanroom 100 Anti-Microbial HyperHEPA Filter H13 (L)
The Anti-Microbial HyperHEPA stage effectively eliminates at least 99.97% of all particulate pollution sized 0.3 microns and larger.
Part Codes
IQAir Cleanroom 100 Air Purifier (Includes Filters) |
1AB ED0 |
IQAir Cleanroom 100 Anti-Microbial PreMax Filter F8 (S) |
102 10 10 02 |
IQAir Cleanroom 100 Anti-Microbial HyperHEPA Filter H13 (L) |
102 16 13 00 |
